  3. Manual Powder Coating Spray Gun Colo-161S-B

This product has been discontinued and removed from our shelves.

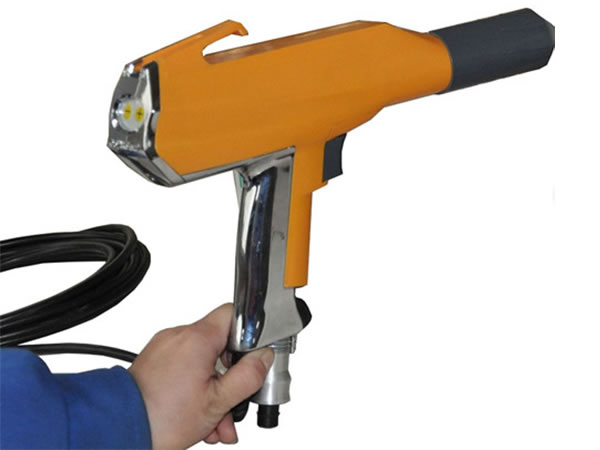

Manual Powder Coating Spray Gun Colo-161S-B

As a new powder coating system, the colo-161S-B manual powder coating spray gun is only in COLO! Located on the well balanced powder coating spray gun, controls are user-friendly and customizable.

This manual powder coater machine has been specially designed for companies looking to improve their powder coating application and overall efficiency of that application.

Parameters of Powder Gun
Gun weight: 500G
Rated output voltage: 24VDC
Input voltage: -200KV
Maximum output current: 180uA
Maximum output voltage: 0-100KV (adjustable)
Maximum powder injection: 600g/min
Polarity: negative (-)
Pneumatic Data
Maximum input-air pressure: 10kg/cm
Optimum input-air pressure: 6kg/cm
Minimum input-air pressure: 4kg/cm
Maximum water vapor content or compressed air: 1.4g/Nm3
Maximum oil vapor content of compressed air: 0.1ppm

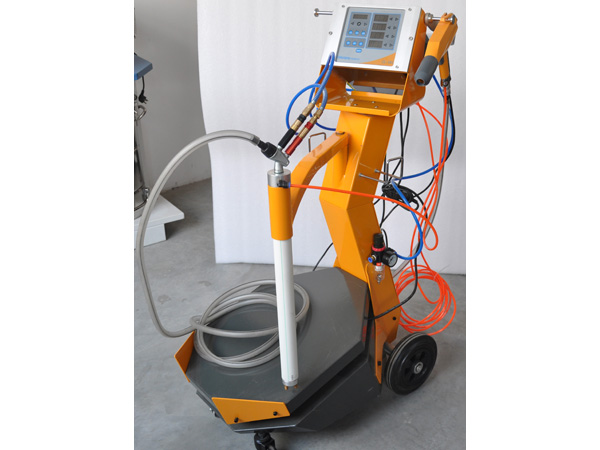

The output of powders can be adjusted at the back of the gun, and the remote control gives a better flexibility. This model can set and save up to 20 programs. The main machine is equipped with 3 most frequently-used preset-programs (flat shapes, corners, complex shapes). No matter how complex your workpiece is, this machine can easily provide the most perfect spraying effect.
