Automatic Reciprocator

COLO-2000D powder painting automatic reciprocator
Technical characteristics
Power supply: AC 220V 50HZ-60HZ
Frequency: Japanese Mitsubishi
Power motor: 0.75KW
Speed: 0~60m/min
Acceleration: 1M/Second
Speed can be adjusted by inverter.
Low limit setting by potentiometer
Environment: 0~50degree
Mainframe display mode: digital display
Max load capacity: 40kg
Motion range: 0.3~2.5M(Can be set)
Point delay time: 0-5sec (optional)

The advantages of colo-2000D
80 storable programs
High quality motor

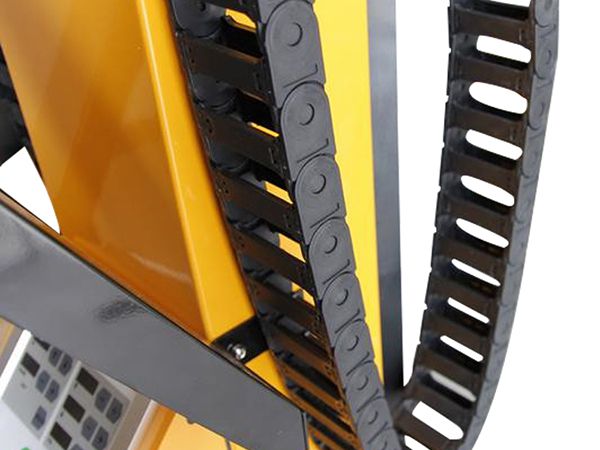

Extremely smooth running through chain
High loading capacity and stability
Long-stroke and short-stroke operation

Technical Specifications

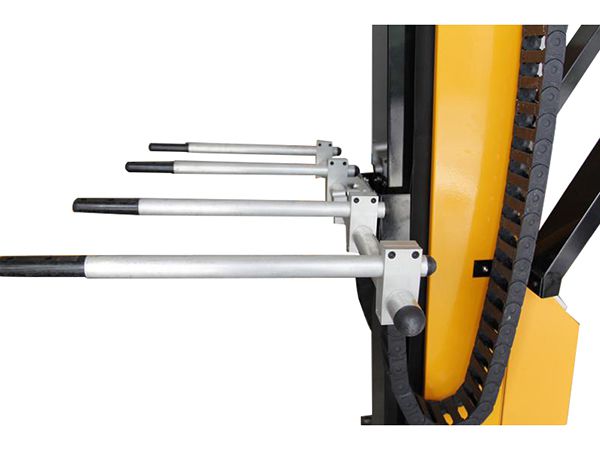

Load of lifting rod 25kg (8 guns)
Speed range 0-55m/min
Acceleration 1m/sec
Input voltage AC220V/110V±10%
Input frequency 50-60Hz
Nominal power 0.75kw
Standard stroke 1500mm, 180mm, 2000mm, 2500mm or customized
Protection function Limit switch for upper and lower positions with cushion rubber for buffering
Ambient temperature -20℃--60℃
