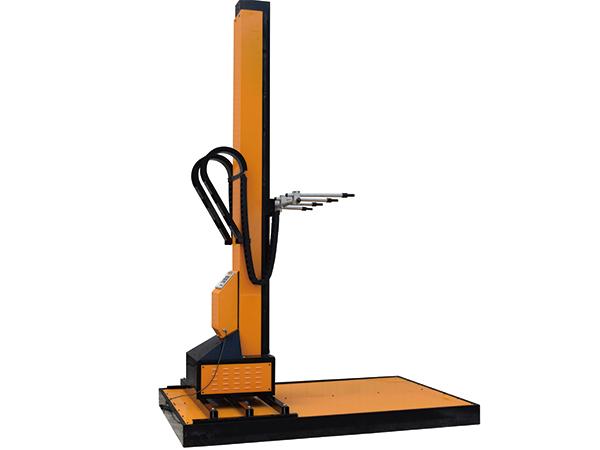

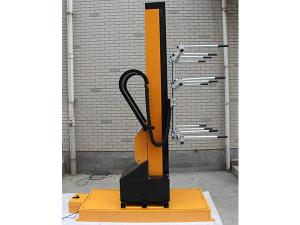

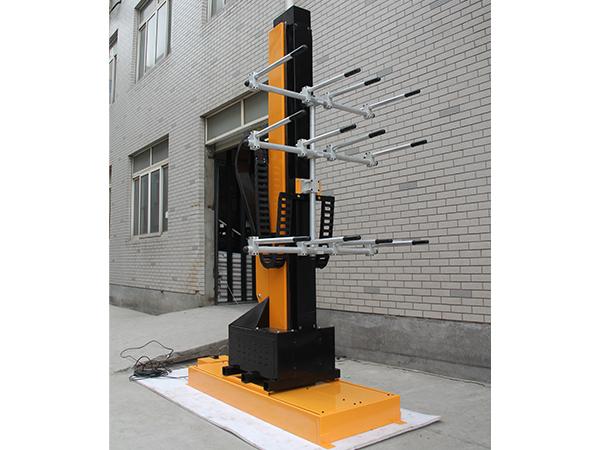

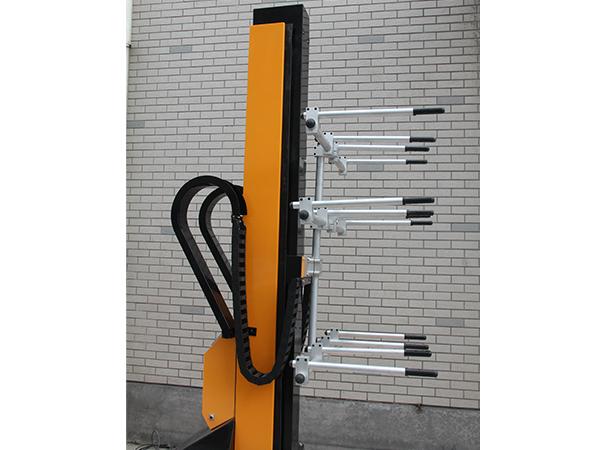

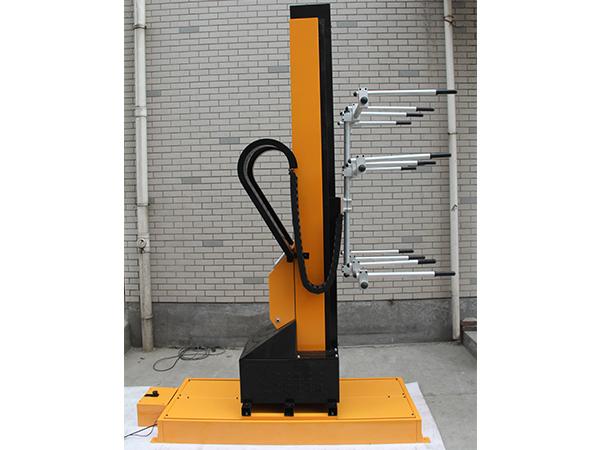

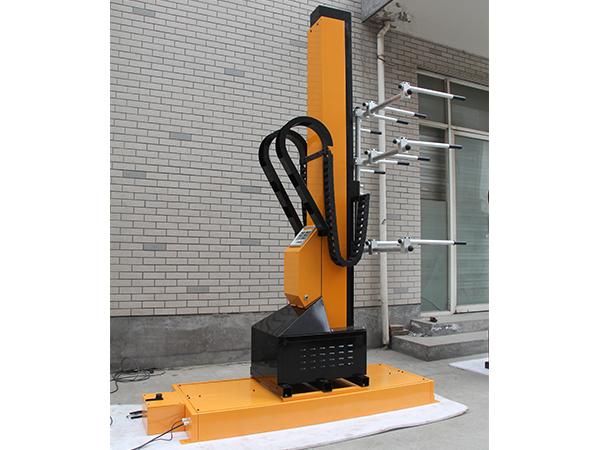

Painting robots (Reciprocator machine) COLO-2300D

COLO-2300D automatic reciprocator moves the powder spray guns forward and backward. It is a precise and consistent system that applies servo motor and timing belt.

Features
1. Various sizes and strokes are optional according to the size of objects to be coated. (Optional stroke: 1500, 2000, 2500, 3000mm)
2. The automatic positioning can turn into manual positioning, if needed.
3. Precise reciprocating motion and constant speed adjustments are accomplished by using a servo motor. The timing belt optimizes the quality.
4. Gun shaking during stroke motion has been minimized by using a robust and smooth central axis.
5. The user can select easy mode or manual mode according to the specific needs.
6. PLC touch panel is applied.
7. Malfunction caused by sensor trouble has been eliminated by applying a servo motor.

Technical Data
Operating voltage AC110~240V, 50~60Hz
Reciprocating speed 10~60m/Min.
Power consumption 1.5kW
Range of operating temperature -10℃~50℃
