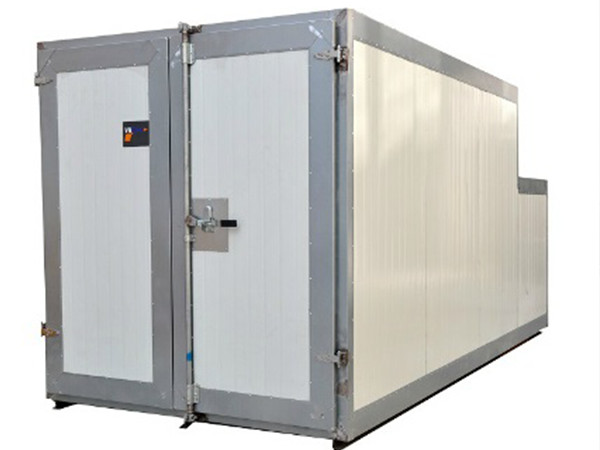

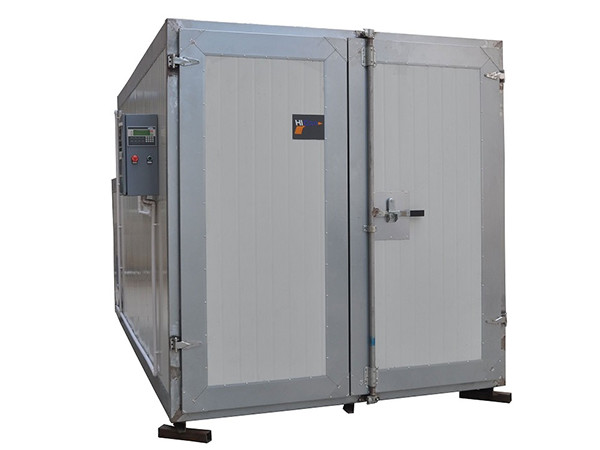

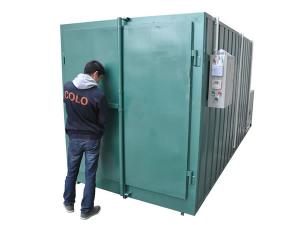

Gas Powered Curing Oven, Colo-3172

The Colo-3172 gas powder curing oven is an industrial curing batch oven. Its burner is sourced from Italy Riello, providing the heat up to 200,000kcal. Its dual digital controller brings plug-to-play simplicity. The bake timer comes with audible alarm warn of main disconnection.

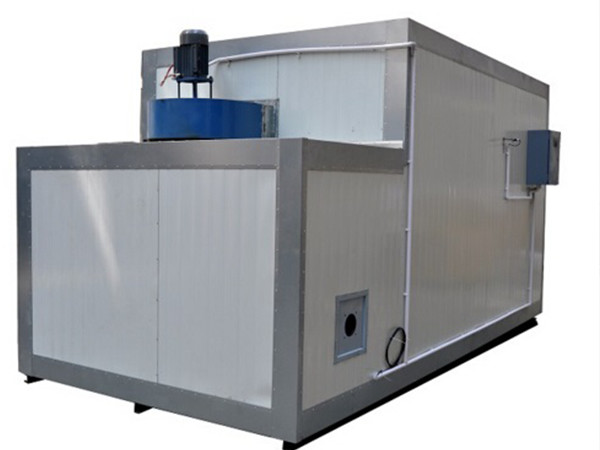

This gas curing oven adopts forced air circulation. The majority of the air is recirculated through the heat system, while a small amount of air is exhausted to the outside atmosphere to meet code requirements. This gas powder coating oven is shipped fully assembled just by mounting a heat box. The heat box can be either side-wall mounted or rear-mounted on the industrial curing oven.

Technical Parameters of the Gas Powered Curing Oven
Inside dimensions: Long3M x Width1.65M x Height 2M
Outside dimensions: Long4.4M xWidth2M x Height 2.26M
Operating temperature: 150F to 450F max.

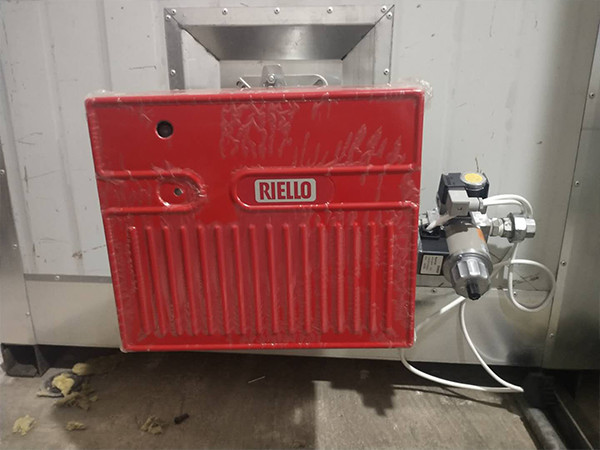

Burner: 200,000 kcal, Italy Riello burner
Electrical: Three phase / single phase optional at additional cost

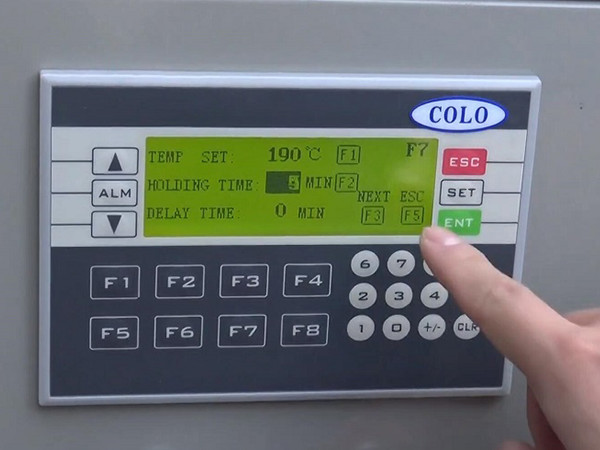

Controls: Dual digital controllers / Bake timer with audible alarm warn of main disconnection, plug-and-play simplicity

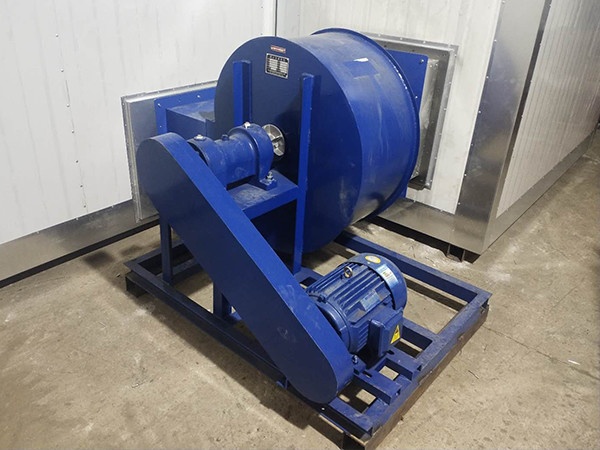

Air circulation: Forced air circulation
Heat box: Side wall mount or rear mount
Construction: The gas powered curing oven is shipped fully assembled just by mounting a heat box.
