GM03 Manual Powder Gun Replacement

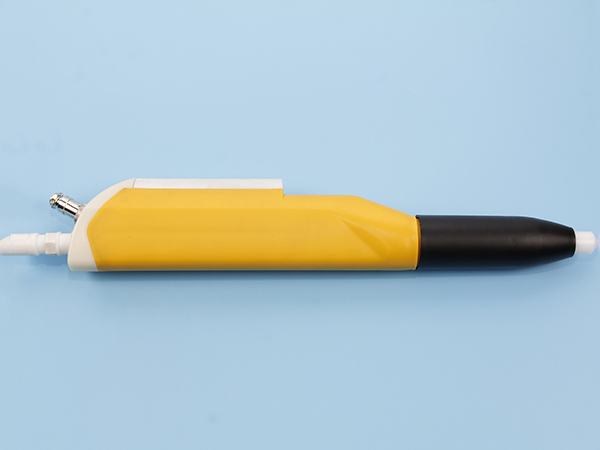

GM03 manual powder gun - complete:
negative polarity, gun cable 2 m 1007 971
positive polarity, gun cable 2 m 1007 974
negative polarity, gun cable 6 m 1007 972
positive polarity, gun cable 6 m 1007 975
negative polarity, gun cable 12 m 1007 973
positive polarity, gun cable 12 m 1007 968
Gun body 1007 220
Cascade - complete, negative polarity 1007 231
Cascade - complete, positive polarity 1007 232
Print holder - complete 1007 216
End plate with hook 1007 217
Grip end plate - complete 1007 961
Trigger - complete 1007 213
Trigger cover 1007 212
Countersunk-head screw - M4x6 mm 1000 845
SuperCorona holder 1007 238
Gun cable 2 m - complete 1007 963
Gun cable 6 m - complete 1007 964
Gun cable 12 m - complete 1007 965
Rinsing air connection 1000 804
Rinsing air hose 100 854*
Powder tube - complete 1007 958 #
Compression spring 1001 488
Clip ring 1007 960
Hose connection Ø 11-12 mm - complete (incl. pos. 15.1) 1001 340 #
Hose connection Ø 9-10 mm - complete (incl. pos. 15.1) 1002 030 #
O ring for pos 15 1000 822 #
Threaded sleeve (see corresponding Spare parts list)
Nozzle (see corresponding Spare parts list)
SuperCorona PC05 1008 165#
Cascade space seal 1007 635#

GA03 Automatic powder gun replacement
OptiGun GA03-X gun body – complete, polarity negative, incl. pos. 1-6
OptiGun GA03-700 1008 731
OptiGun GA03-900 1008 732
OptiGun GA03-1100 1008 733
OptiGun GA03-1300 1008 734
OptiGun GA03-1500 1008 735
OptiGun GA03-1700 1008 736
OptiGun GA03-1900 1008 737
OptiGun GA03-2100 1008 738
OptiGun GA03 shaft – complete, negative polarity (see spare parts list "Shaft")
Powder tube – complete (incl. pos. 2-5) 1008 644#
Powder tube 1008 641#
O-ring – Ø 12x1 mm, FPM75 1006 324#
Hose holder 1008 642#
Clamp ring 1008 643
Ground plate 1011 457
SuperCorona connection 1009 764
Screw – M5x6 mm 263 907
