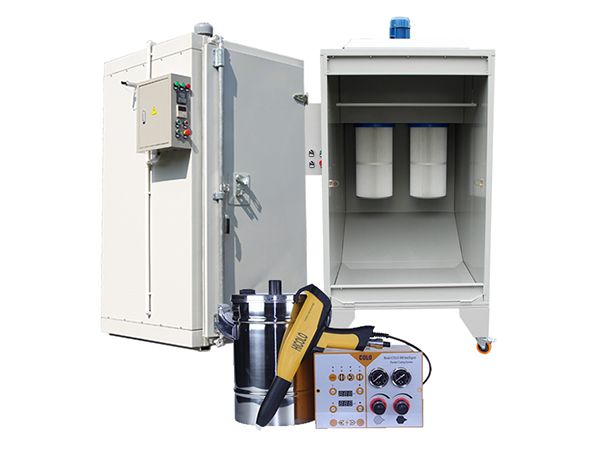

Small Powder Coating Equipment Package
The small powder coating package includes COLO-800DT-H powder coating gun, COLO-S-1115 powder spray booth, COLO-1688 powder curing oven, offering professional coating applications for processing small sized objects, such as car rims, bike parts, engine parts and metal accessories.

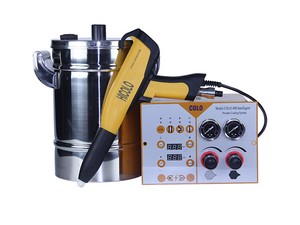

Powder Coating Machine COLO-800DT-H
- With a 10lbs fluidizing powder hopper, the powder coating machine is suitable for small scale powder coating jobs.
- Reliable quality and high performance components require minimum maintenance cost.
- Intelligent controller with 3 pre-set programs delivers the easiest operation when coating different objects.
- 100kv spray gun maximizes the electrostatic charging, maintaining the highest transfer efficiency for long-lasting production.

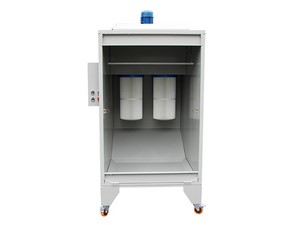

Powder Spray Booth COLO-S-1115
- With compact structure, the powder spray booth is more flexible and practical when powder coating space is limited.
- Combines 2 pcs high-precision cartridge filters that allows to 100% separate powders from airflow.
- Pulse-jetting filter cleaning for maintaining peak performance of filters and prolonging service life.
- Control panel includes power switch, fan start/stop switch, pulse cleaning timer, lighting switch and emergency stop button.
Technical Specifications
| Model | COLO-S-1115 |
| Operating dimensions | W 1000 x D 1000 x H 1500mm |
| Overall dimensions | W 1200 x D 1500 x H 2000mm |
| Weight | 400 kg |
| Power supply | Electric |
| Nominal power | 1.5 kw |
| Voltage | 380V/220V |
| Frequency | 50-60Hz |
| Filters | Polyester |
| Filters count | 2pcs (D325*H900 mm) |
| Hang type filters | Easy for change |
| Filter cleaning system | Pneumatic |
| Air consumption | 6600 m3/h |

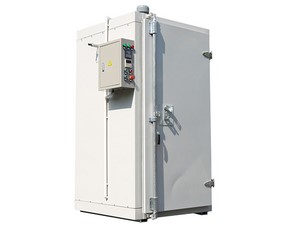

Powder Coating Oven COLO-1688
- Engineered with premium components to ensure the reliable quality and less maintenance.
- Oven wall is 100mm rock wool board with galvanized inner wall and color-steel external outer wall, effectively
preventing temperature dropping.
- Circulation fan cycles hot air through the entire chamber, maintaining uniform temperature for consistent and even
powder coating finish.
- Heat unit and circulation fan are controlled via an easy-to-use control panel.
Technical Specifications
| Model | COLO-1688 |
| Operating dimensions | W 1000 x H 1600 x D 845 mm |
| Overall dimensions | W 1400 x H 2200 x D 1100 mm |
| Power supply | Electric, 6.5kW |
| Voltage | 220V/380V |
| Frequency | 50-60 Hz |
| Warm-up time | 15-30min (180°C) |
| Temperature stability | <± 3-5°C |
| Max. temperature | 250°C |
| Ventilation performance | 805-1677m3 /h |
| Motor power | 0.55kW |
