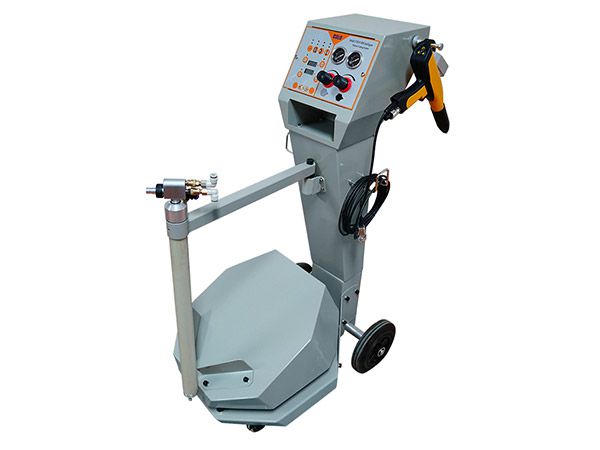

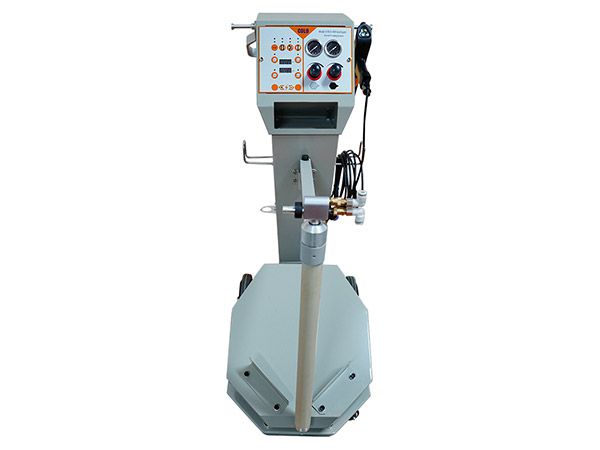

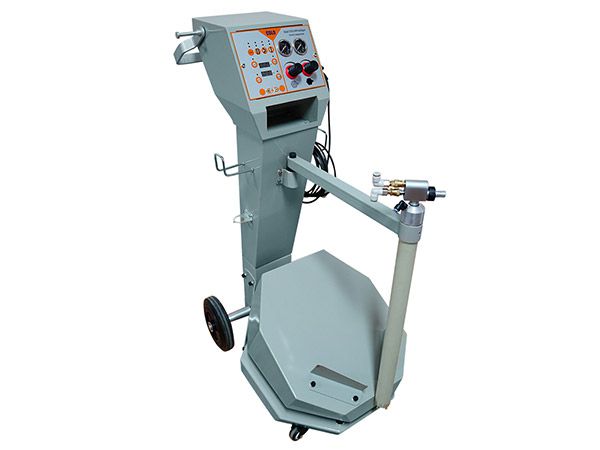

Box Feed Powder Coating Gun Colo-800D-L2-B

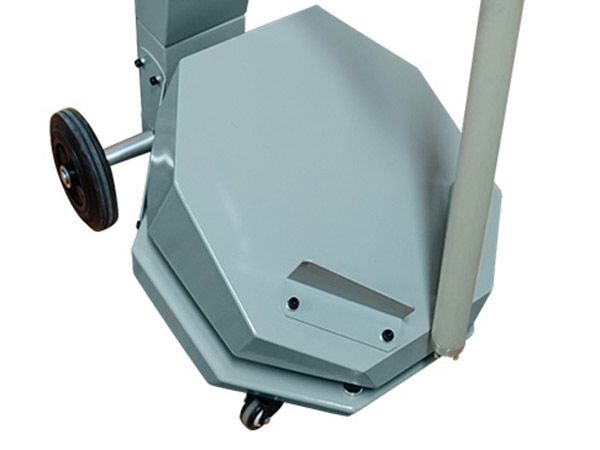

The box feed powder coating gun is our intelligent powder painting spray gun with new trolley. As a manual spray gun, the colo-800D-L2-B is lightweight, compact, yet exceptionally rugged and reliable, to provide optimum operator comfort and control, while withstanding tough conditions in a typical powder coating production environment.

This electrostatic powder coating gun is usually used for some factories which change colors more often.

Parameters of Colo-800D-L2-B Powder Coating Machine
Electrical Data
Power range: 220V / 110V
Frequency: 50HZ
Temperature range in use: -10℃ to +50℃

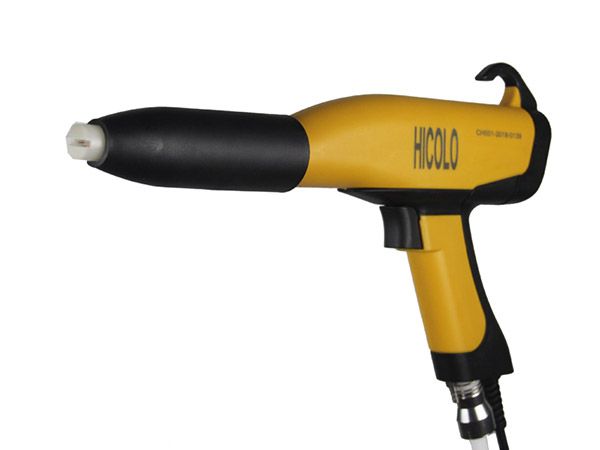

Powder Gun
Gun weight: 500G
Rated output voltage: 24VDC
Input voltage: - 200KV
Maximum output current: 180uA
Maximum output voltage: 0-100KV (adjustable)
Maximum powder injection: 600g/min
Polarity: negative (-)
Pneumatic Data
Maximum input-air pressure: 10kg/cm
Optimum input-air pressure: 6kg/cm
Minimum input-air pressure: 4kg/cm
Maximum water vapor content or compressed air: 1.4g/Nm3
Maximum oil vapor content of compressed air: 0.1ppm
Maximum compressed-air consumption: 13.2m3/h

The machine is ready to use and can be put into operation after easy assembly.
