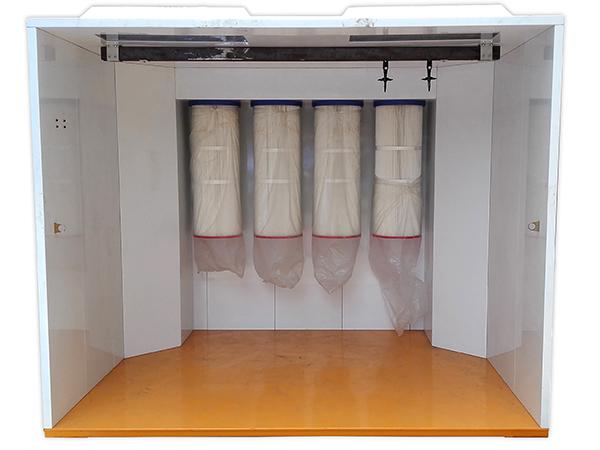

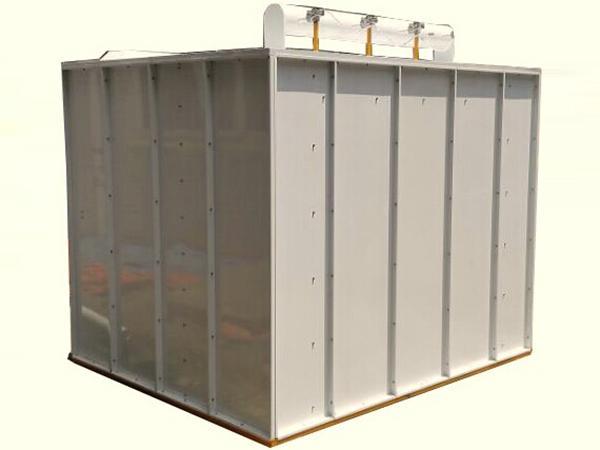

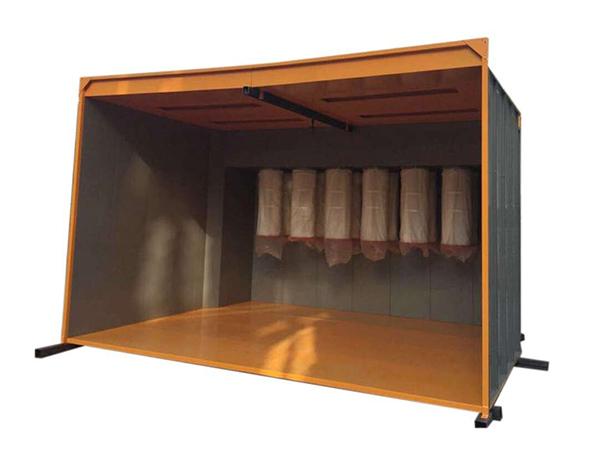

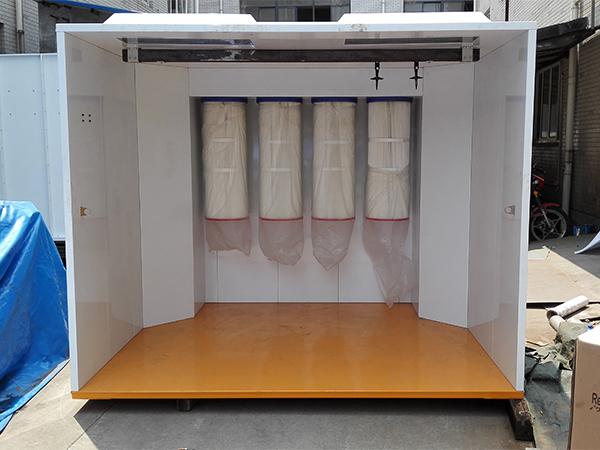

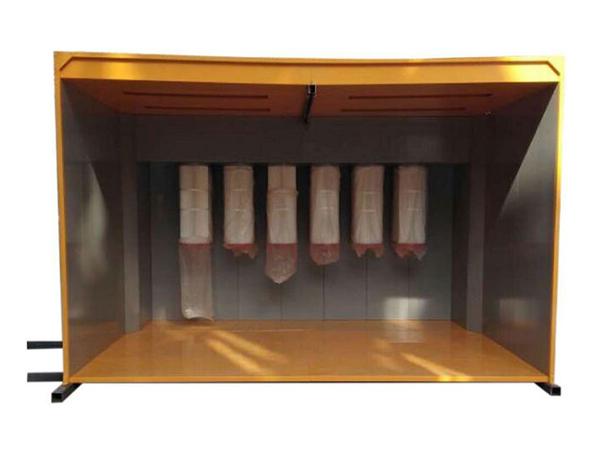

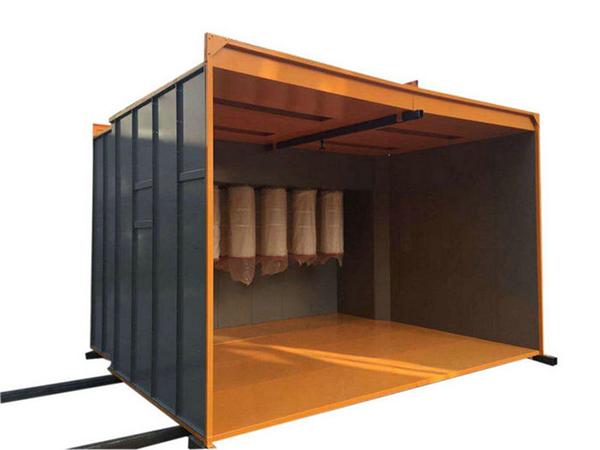

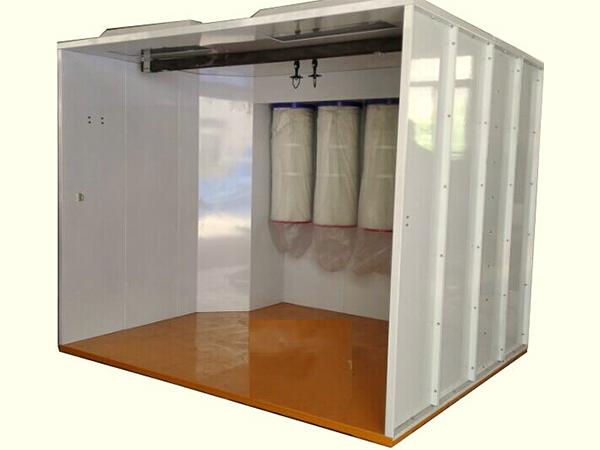

Walk-in Powder Coating Booth
Features
1. Walk-in booths are ideal for coating large, bulky and heavy parts.
2. As the name suggests, after the parts are placed into the coating booth, the operator walks in and coats the parts from all sides.
3. These parts are then conveyed directly into the powder curing oven.
4. These booths are used for control panels, cabinets, large iron cast products, etc.
5. The walk-in booths also can be equipped with a mono cyclone as a recovery system.
Technical Parameters of COLO-S-3222 Walk-in Powder Coating Booth
| Model |
COLO-S-3222 |
| Booth type |
Walk in |
| Operation dimensions |
3000width x 2000 height x 1700 depth |
| Overall dimensions |
3080width x 2080 height x 2200 depth |
| Weight |
450kg |
| Power supply |
Electric |
| Nominal power |
3.5kW |
| Voltage |
380V |
| Frequency |
50-60Hz |
| Filters |
Polyester |
| Filters quantity |
4 |
| Filters hang type |
Easy for change |
| Filter cleaning system |
Pneumatic |
| Warranty |
12 months |
Technical Parameters of COLO-3924 Walk-in Powder Coating Booth
| Model |
COLO-3924 |
| Booth Type |
Walk-in |
| Operator dimensions |
2440width x 3910 lenght x2440 depth |
| Weight |
750kg |
| Power supply |
Electric |
| Nominal power |
5.5kW |
| Voltage |
380V |
| Frequency |
50-60Hz |
| Filters |
Polyester |
| Filters count |
6 |
| Filters hang type |
easy for change |
| Filter cleaning system |
Pneumatic |
| Warranty |
12 months |
