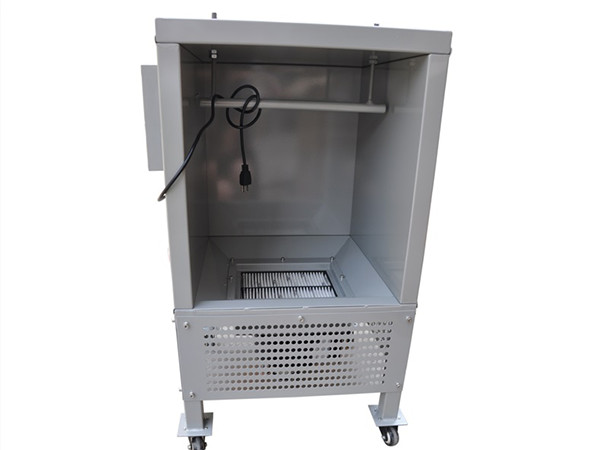

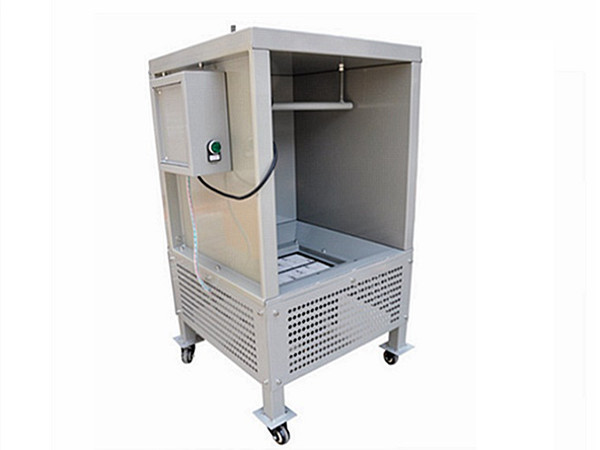

Lab Testing Powder Coating Spray Booth
COLO-S-04548-T
Features
- COLO-S-04548-T powder coating booth is mainly used for laboratory using or testing jobs, etc.
- Space-saving structure is also friendly for powder coating in small working space.
- Made of powder coated steel, the spray booth is durable and corrosion-resistant.
- Featuring easy operation, the spray booth starts to operate after connecting with power supply and air source.
Specifications
| Model | COLO-S-04548-T |
| Operating dimensions | 400 width x 480 depth x 500 height mm |
| Overall dimensions | 535 width x 560 depth x 950 height mm |
| Weight | 50 kg |
| Power supply | Electric |
| Nominal power | 50 KW |
| Voltage | 380V/220V |
| Frequency | 50-60Hz |
| Filters | Polyester |
| Filter cleaning system | Pneumatic |
| Air consumption | 4000 m3/h |
Details of the Lab Testing Powder Coating Spray Booth
- The air in the workshop is drawn into filters via powerful fan, which drags the powder particles from the overspray towards filters for complete capture.

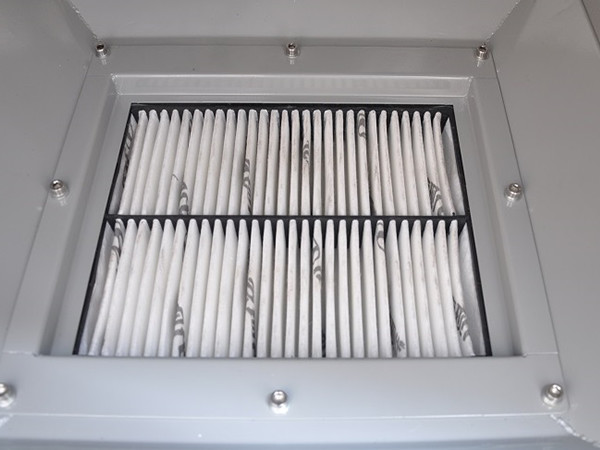

- Built with high-precise filter in the bottom of booth to collect overspray powder, maintains a clean working environment.

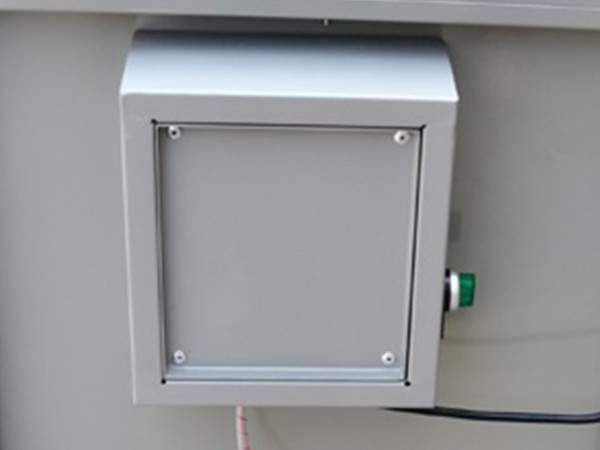

- Safe and simple operation via the user-friendly control panel, including power switch, fan start/stop switch, etc.

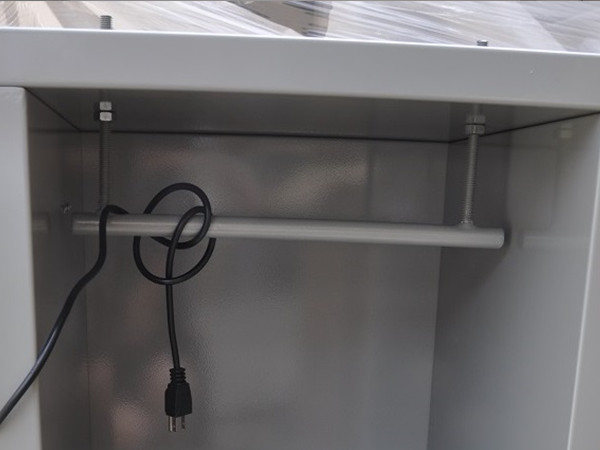

- Work parts could be hung on the built-in hanger, making powder coating process more labor-saving.
