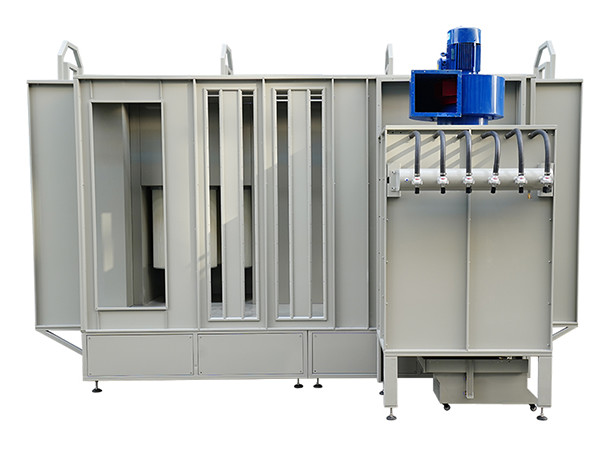

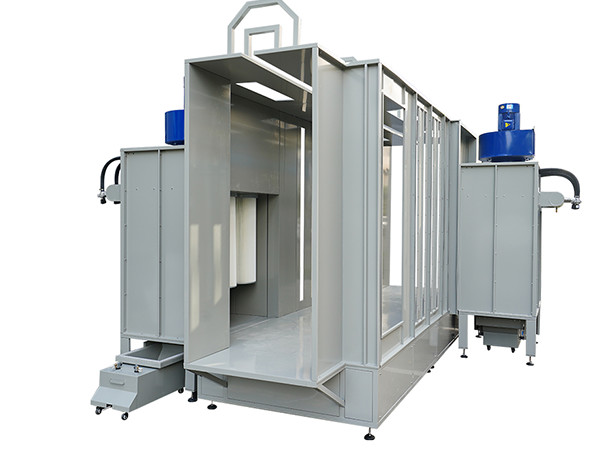

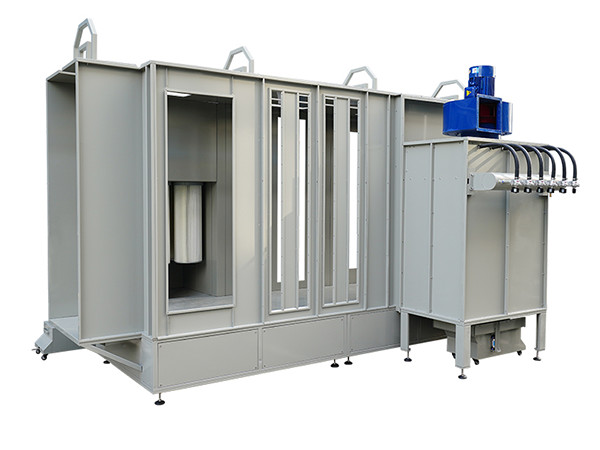

Automatic Powder Coating Booth, COLO-S-0825
Features
- COLO-S-0825 automatic powder coating booth is ideal for single color applications in automatic spraying line.
- The booth is made of durable powder coated steel, easy to clean without powder accumulation inside the booth.
- Designed with both automatic and manual working stations for high-quality finishing.
- High-precision filters capture the overspray powder effectively to provide a cleaner environment.
- Reliable quality based on strict test before delivery, ensures safe operation and minimal maintenance.
Specifications
| Model | COLO-S-0825 |
| Operating Dimensions | 800 width x 4000 depth x 2000 height mm |
| Overall Dimensions | 1200 width x 5000 depth x 2580 height mm |
| Weight | 1100 kg |
| Power supply | Electric |
| Nominal power | 2*5.5 kW |
| Voltage | 380V/220V |
| Frequency | 50-60Hz |
| Filters | Polyester |
| Filter quantity | 12 pcs (D325*H900 mm) |
| Hang type filter | Easy for change |
| Filter cleaning system | Pneumatic |
Details

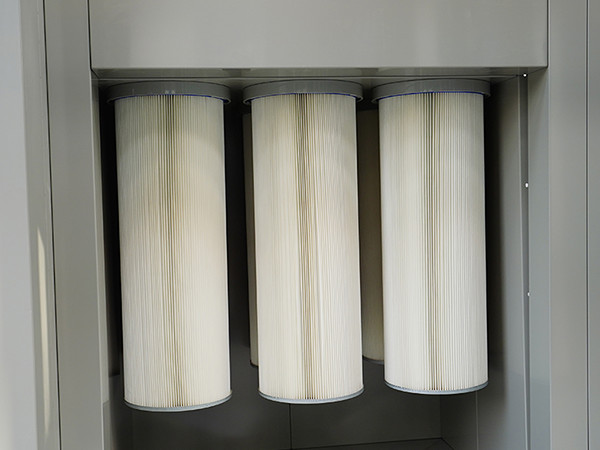

Cartridge Filters
- Double stages of cartridge filters enhance the powder recovery efficiency and saves costs.
- 12 pcs 100% polyester filters with exact porosity allows to fully separate powders from airflow, recirculates clean and filtered air into the booth.

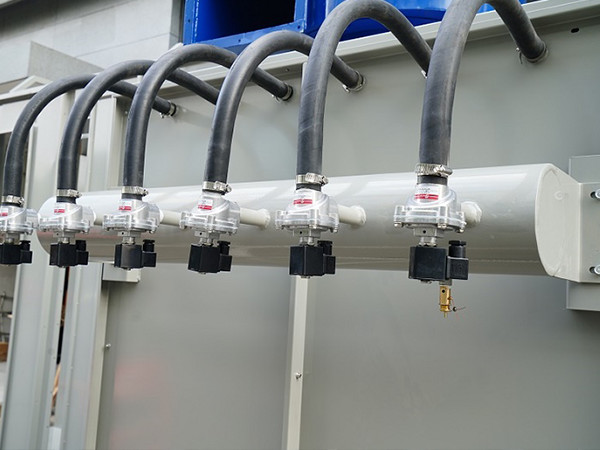

Filter Cleaning System
- Pulse-jetting device regularly cleans the cartridge filters of accumulated powder to ensure peak filtering performance.
- The self-cleaning enables accumulated powders on the filter to be intermittently discharged into a recovery hopper beneath the filter stage.

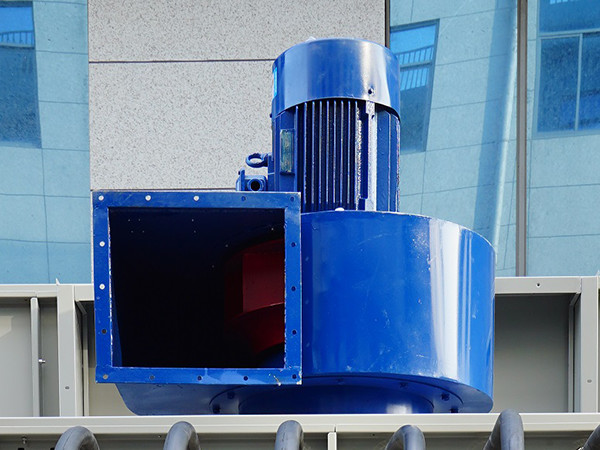

Fan
- The air in the workshop is drawn into the spray booth through the powerful fan, which drags the powder paint from the overspray towards filters for complete capture.
- Engineered with proven exhaust fan for high powder application efficiency and reliable overspray containment.

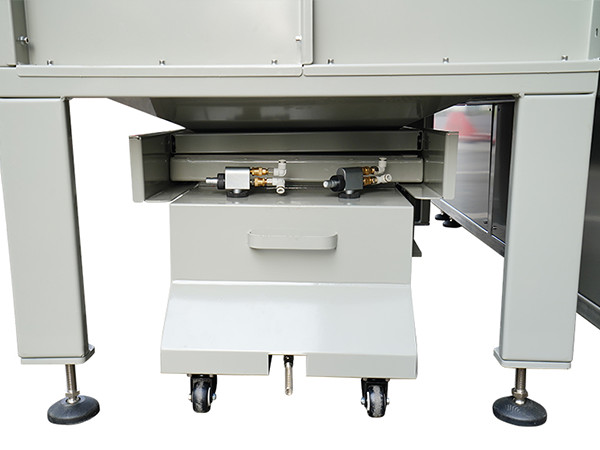

Removable Powder Collector
- After filter cleaning, the discharged powders will be collected into a hopper beneath the unit, and transferred through powder supply equipment, also supports to be operated manually.
- The removable powder collector helps to recycle powder more conveniently.

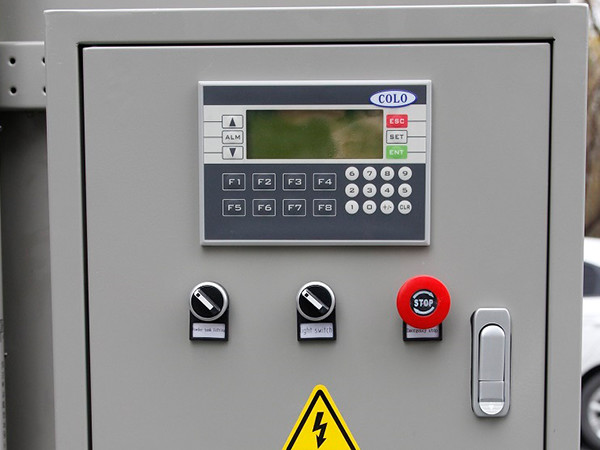

PLC Controller
- Full-function PLC controller offers more convenience and precision to set or adjust parameters.
- User-friendly control panel includes power switch, fan turn on/off switches, pulse cleaning timer and safety interlock switch, etc.
